APPLICATIONS

Simi-rigid for use in low voltage power distribution in fixed indoor and outdoor installations.

Maximum operating temperature: 90°C



CONSTRUCTION

  1. Conductor – Copper, semi-rigid class 2
  2. Insulation –  Cross-Linked polyethylene [XLPE]
  3. Sheath – Polyvinyl Chloride [PVC]

STANDARDS

  • IEC 60502-1
  • IEC 60228

RATED VOLTAGE

  • 0.6/1 KV
Untitled (350 x 600 px) (9)

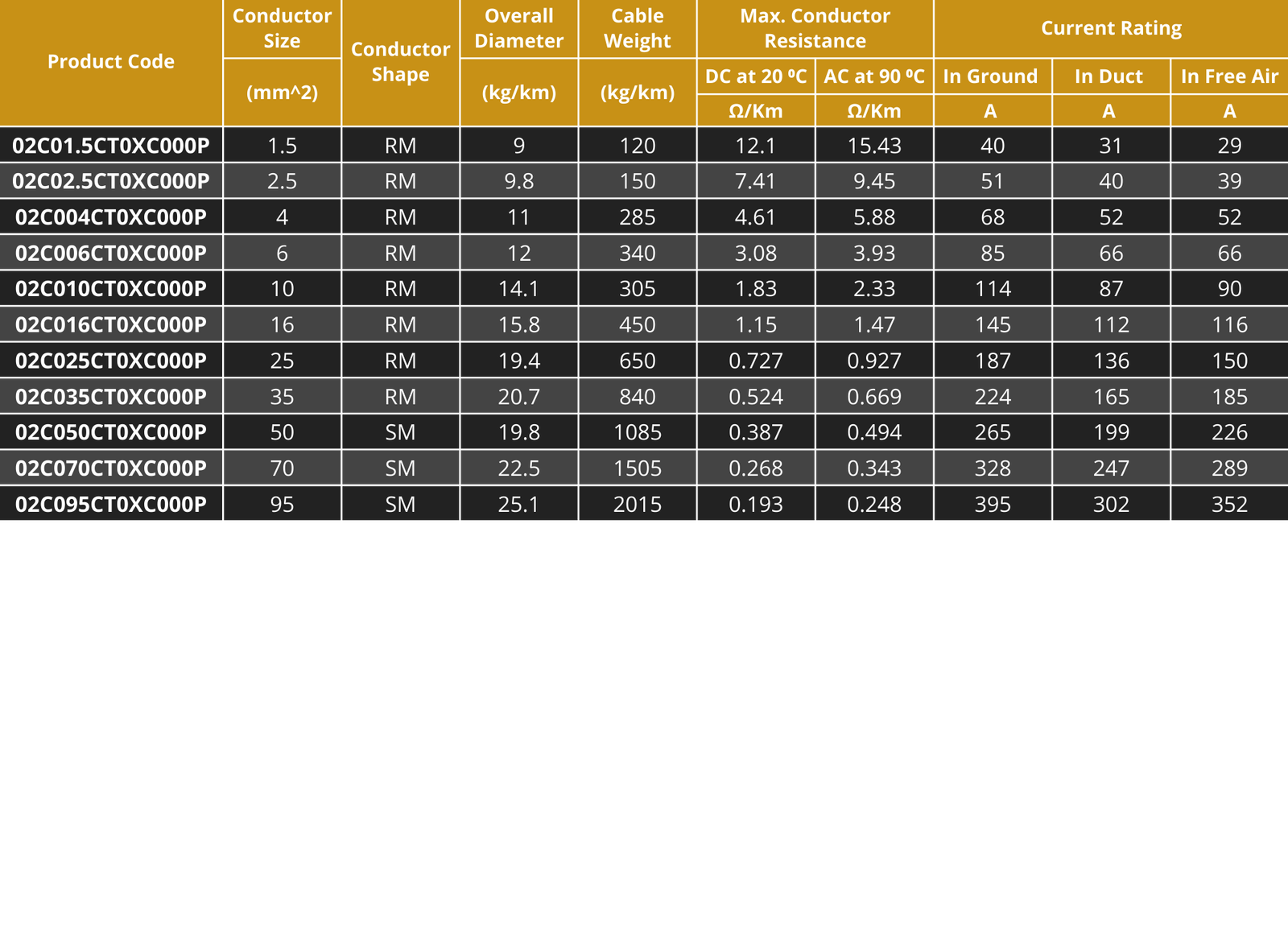

CU/XLPE/PVC 2 CORES
90 (15)

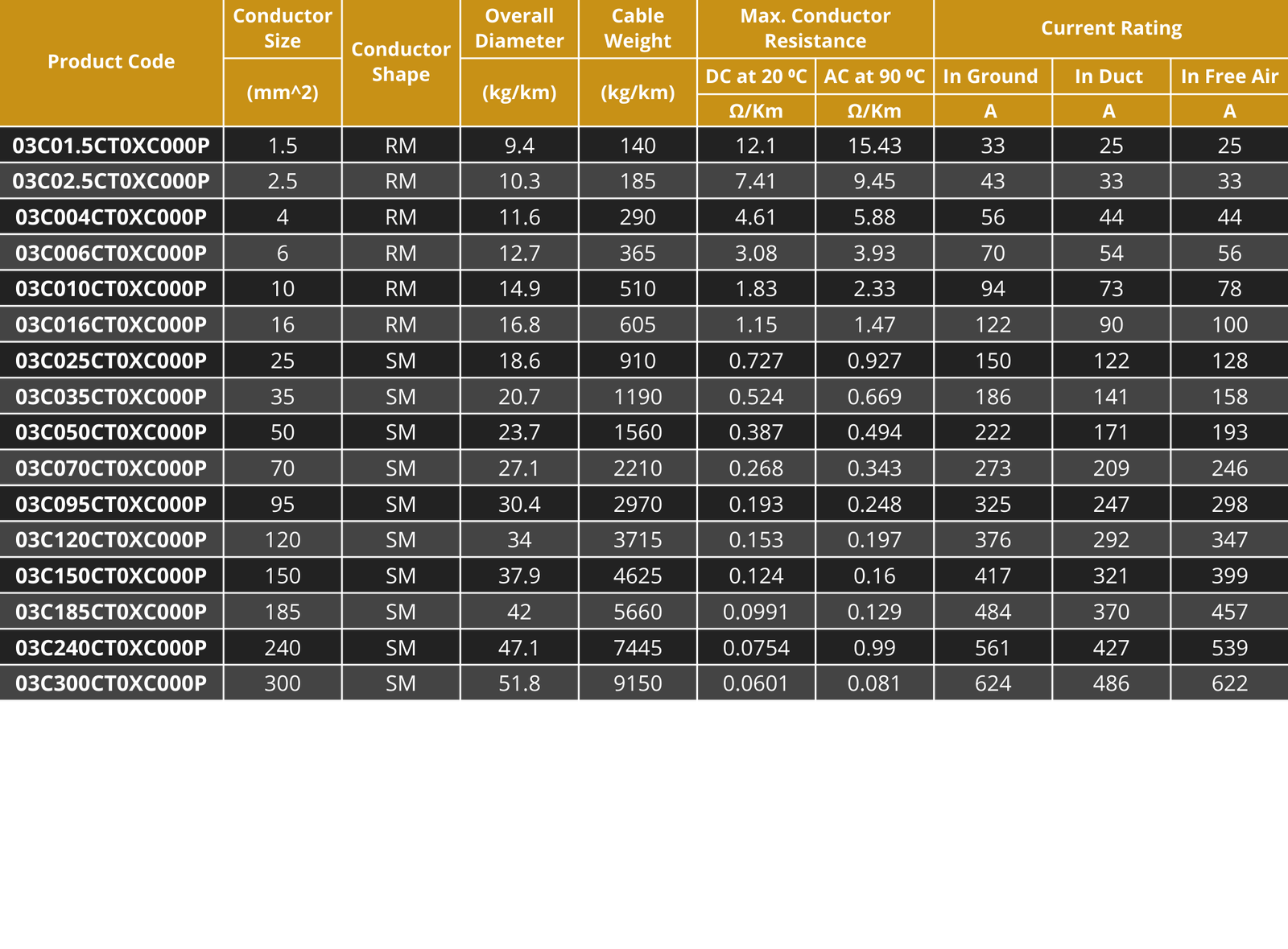

CU/XLPE/PVC 3 CORES
90 (17)

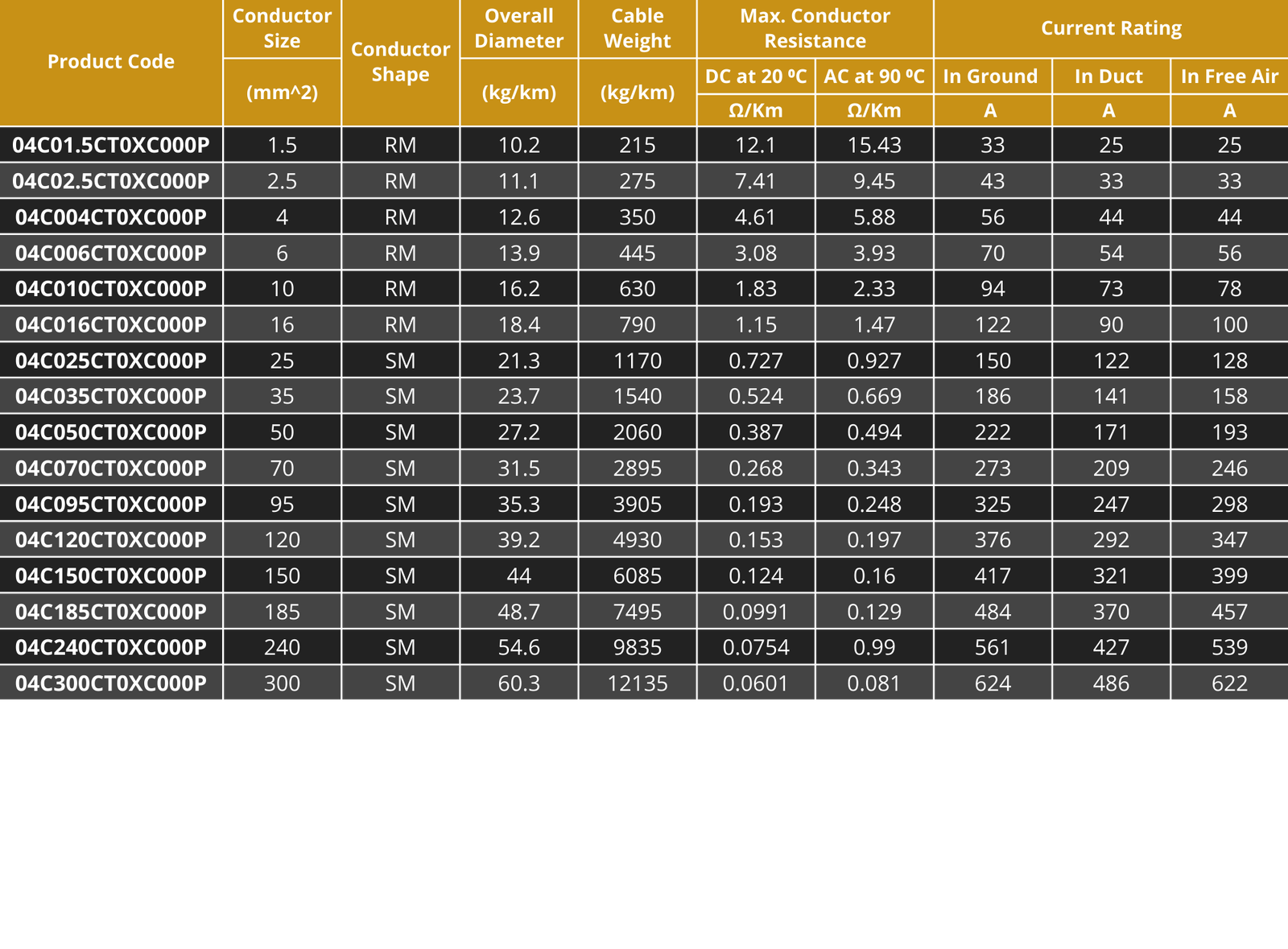

CU/XLPE/PVC 4 CORES
90 (18)

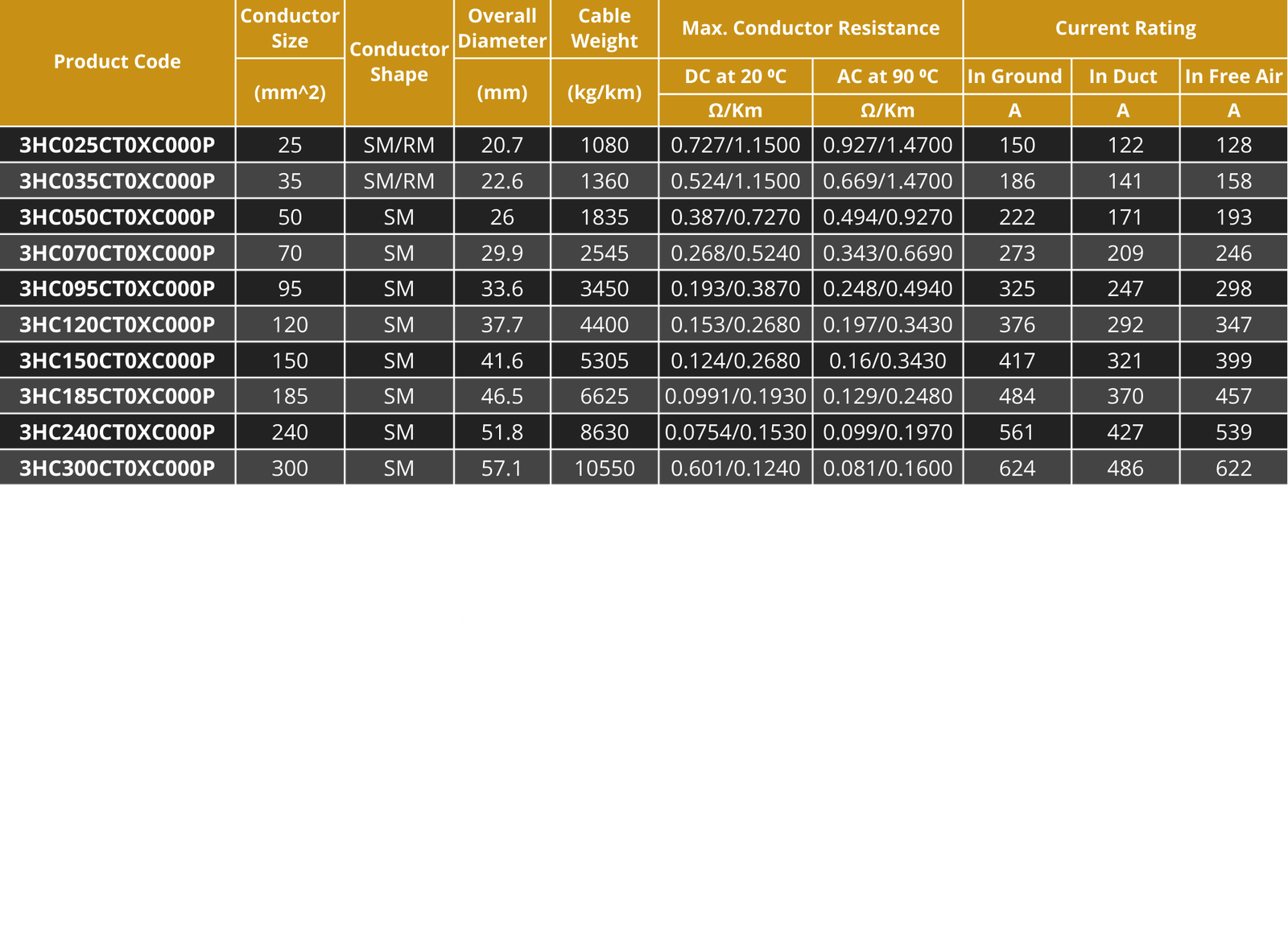

CU/XLPE/PVC 4 core Cable with reduced neutral
90 (19)
