APPLICATIONS

For indoor and outdoor installations in damp and wet locations. Where mechanical damage is expected to°Ccur.

Maximum operating temperature: 90°C



CONSTRUCTION

  1. Conductor – Copper, semi-rigid class 2
  2. Insulation –  Cross-Linked polyethylene [XLPE]
  3. Armour – Double Steel Tape
  4. Sheath – Polyvinyl Chloride [PVC]

STANDARDS

  • IEC 60502-1
  • IEC 60228

RATED VOLTAGE

  • 0.6/1 KV
Untitled (350 x 600 px) (12)

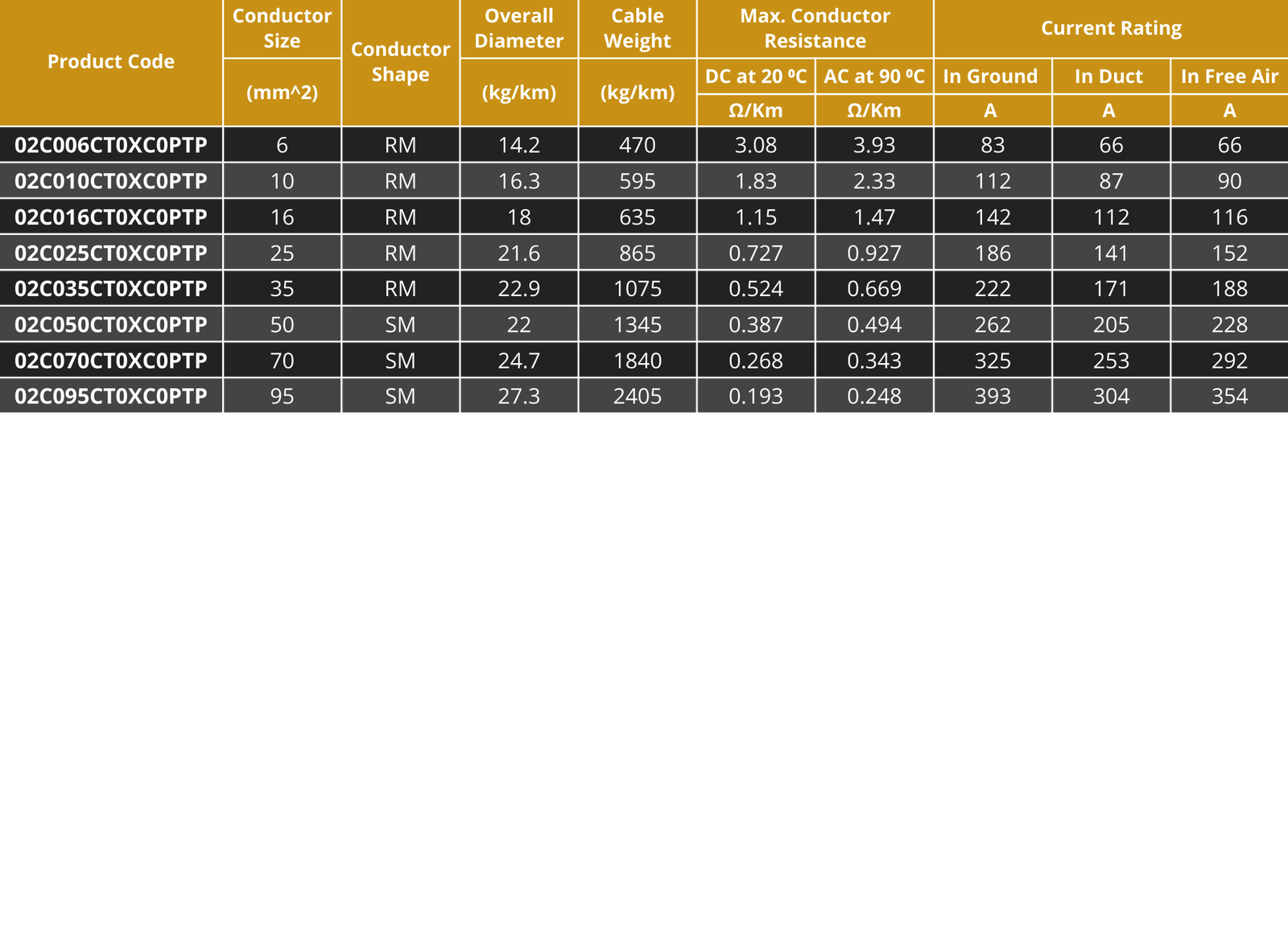

CU/XLPE/STA/PVC 2 CORES
90 (24)

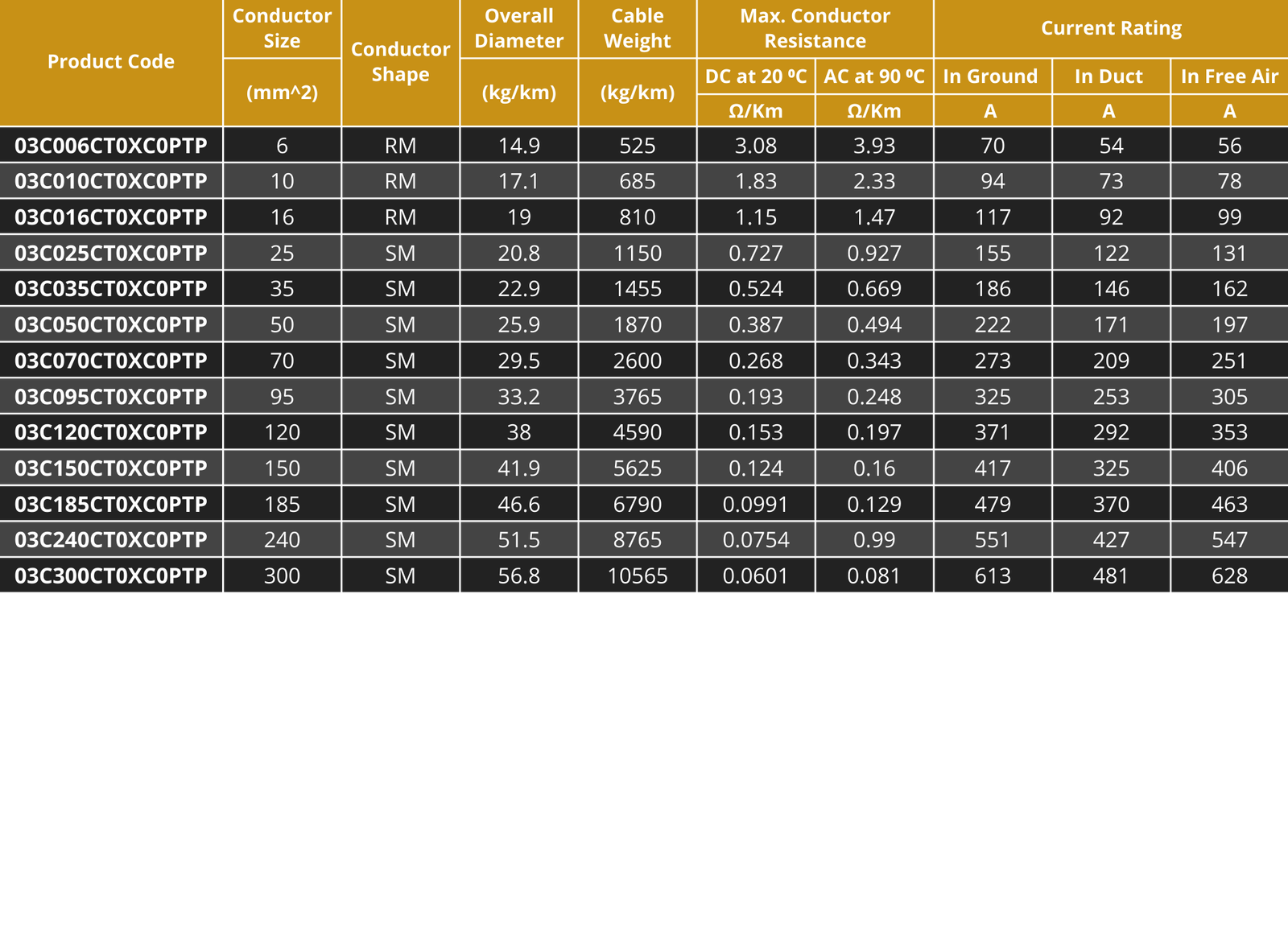

CU/XLPE/STA/PVC 3 CORES
90 (25)

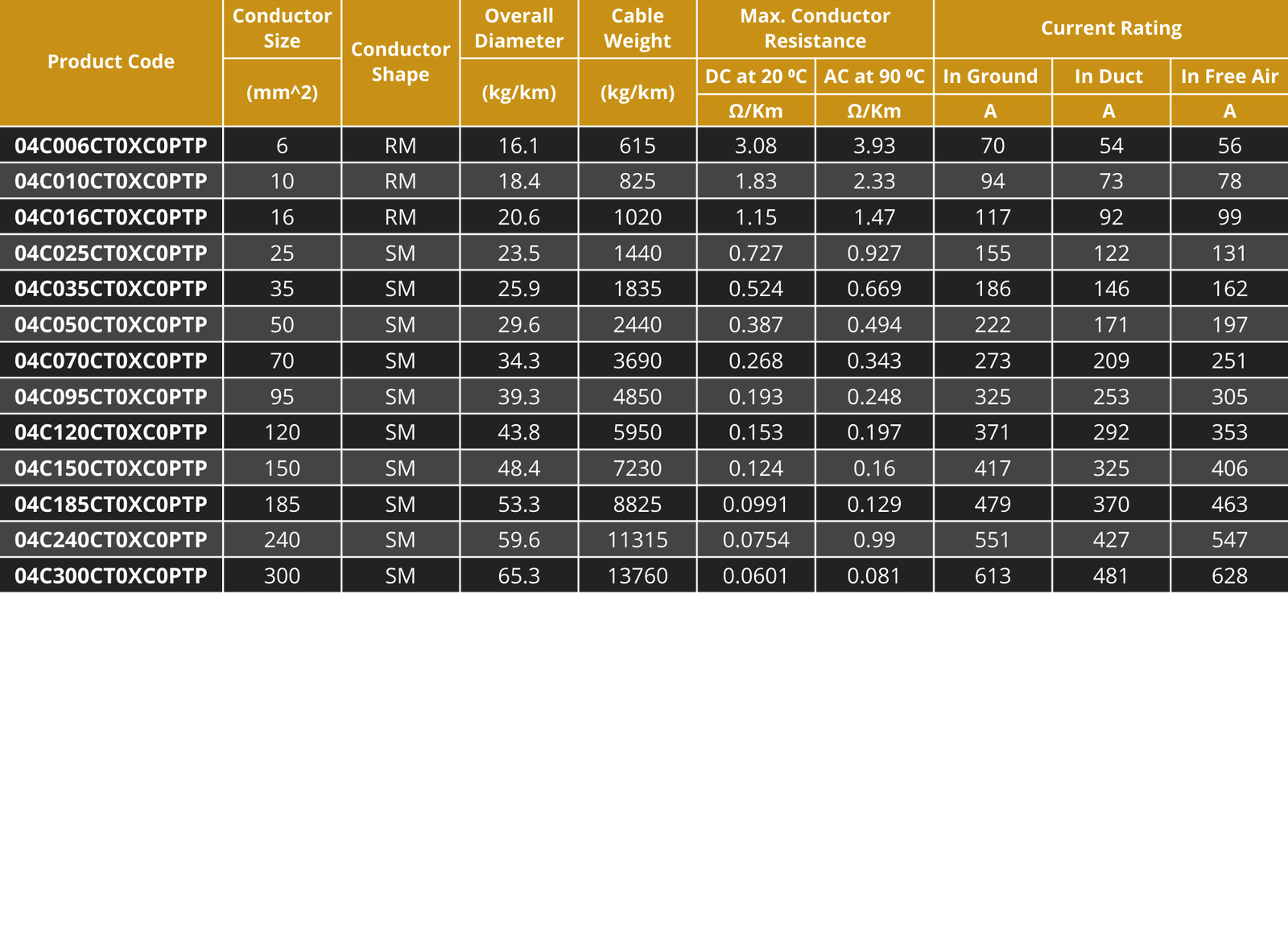

CU/XLPE/STA/PVC 4 CORES
90 (26)

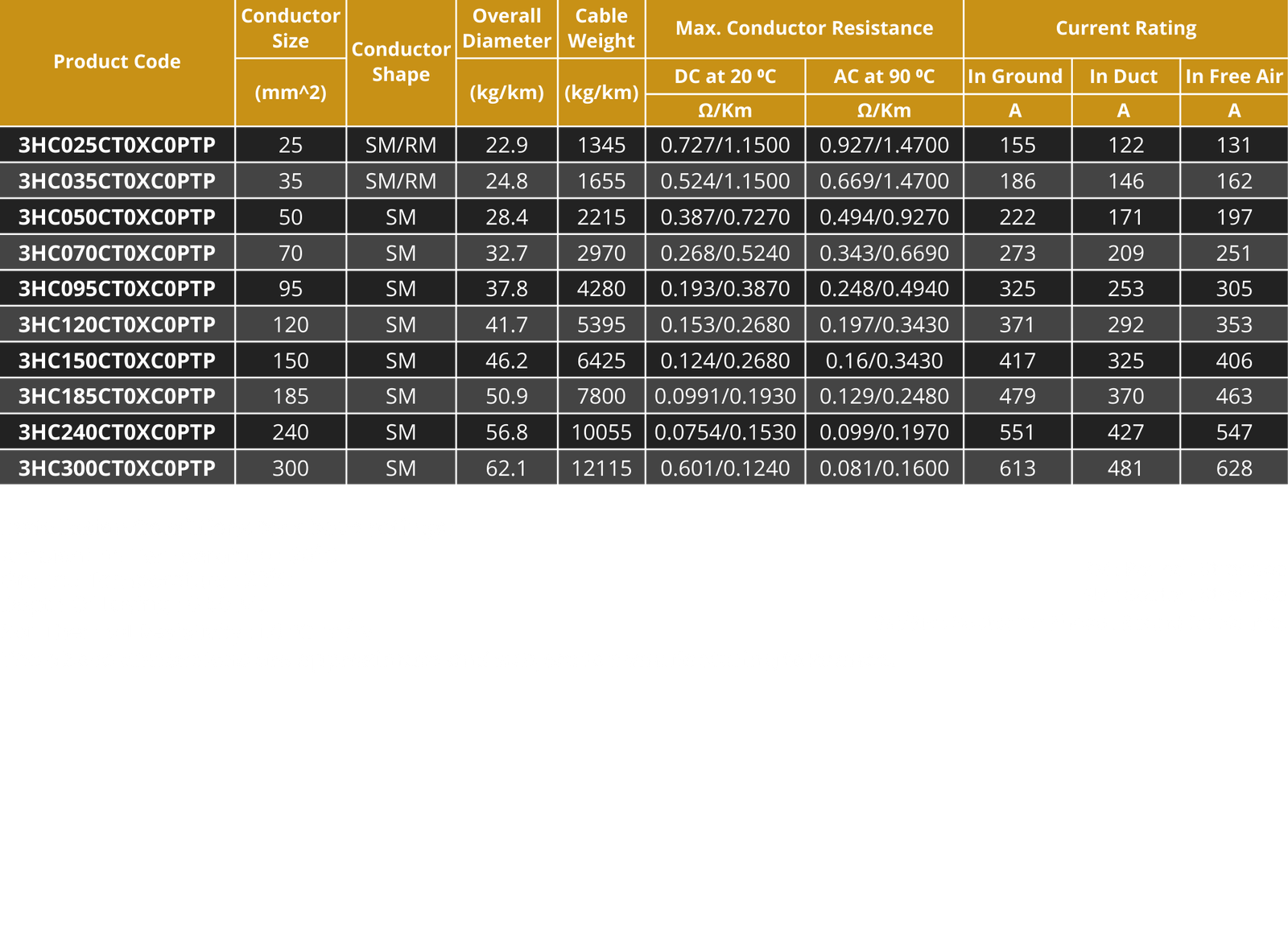

CU/XLPE/STA/PVC 4 core Cable with reduced neutral
90 (27)
